XN-3100

Add to wishlist
Category:

Compact Automation: Fully automated haematology workstation. Medium-sized labs with a fair smear rate will appreciate the XN-3100, which includes two XN analysis modules and the fully integrated slide maker / stainer module SP-50.

XN-3100

  • Fully integrated slide maker & stainer

  • CBC throughput of up to 200 samples/hr

  • Smear throughput of up to 75 slides/ hr

  • Customisable diagnostic applications catering to variable clinical needs

  • Onboard decision rules

  • Integrated backup concept

  • Short turnaround times

For all haematology analyser and haematology systems sales enquiries in Australia, please contact Roche Diagnostics Australia by clicking their logo below:

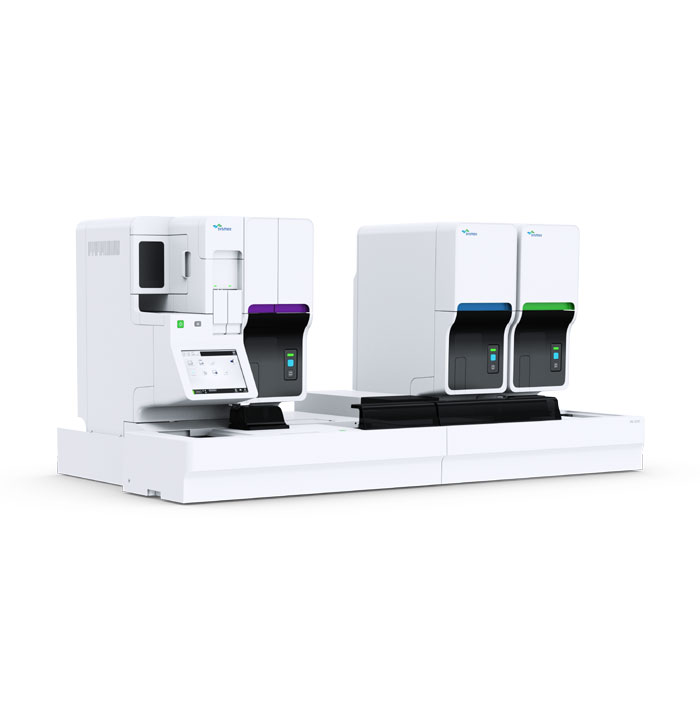

The XN-3100 is a bench-top system consisting of 2 XN modules coupled with an integrated, 5th generation slidemaker and stainer (SP-50). It offers a unique co-primary solution that automates sample processing to slide preparation and staining.

An optional integrated digital morphology solution, DI-60, may be added to increase its productivity as well as provide further standardisation to the laboratory process.

Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed impedance
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume
  • XN module: 88 µL in whole blood (WB) mode and body fluid (BF) mode
  • SP-50 module: 70 µL for smear preparation in auto mode, 38 µL for smear preparation in manual mode
Throughput
  • Two modules of XN-10/20 in combination with SP-50 (S or H)
  • up to 200 samples/h in whole blood (WB) mode,
  • up to 40 samples/h in body fluid (BF) mode per module,
  • up to 30 slides/h in standard mode,
  • up to 75 slides/h with the optional high-throughput licence
Quality control
  • XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF, IPF#
  • With WPC (optional)
    Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
  • XN Stem Cells licence
    HPC%, HPC#
  • Body Fluids with XN-BF
    WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF#(optional)
+ Features & Benefits

The XN-3100 is a bench-top system consisting of 2 XN modules coupled with an integrated, 5th generation slidemaker and stainer (SP-50). It offers a unique co-primary solution that automates sample processing to slide preparation and staining.

An optional integrated digital morphology solution, DI-60, may be added to increase its productivity as well as provide further standardisation to the laboratory process.

+ Specifications
Measurement principles
  • WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
  • RBC/PLT: Hydrodynamically focussed impedance
  • HGB: Cyanide-free SLS haemoglobin
Aspiration volume
  • XN module: 88 µL in whole blood (WB) mode and body fluid (BF) mode
  • SP-50 module: 70 µL for smear preparation in auto mode, 38 µL for smear preparation in manual mode
Throughput
  • Two modules of XN-10/20 in combination with SP-50 (S or H)
  • up to 200 samples/h in whole blood (WB) mode,
  • up to 40 samples/h in body fluid (BF) mode per module,
  • up to 30 slides/h in standard mode,
  • up to 75 slides/h with the optional high-throughput licence
Quality control
  • XN Check (three levels) and XN Check BF (two levels)
Parameters
  • XN-CBC (always with NRBC) & XN-DIFF (always with IG)
  • Whole Blood
    WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV, P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
  • With RET (optional)
    RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
  • With PLT-F (optional)
    PLT-F, IPF, IPF#
  • With WPC (optional)
    Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
  • XN Stem Cells licence
    HPC%, HPC#
  • Body Fluids with XN-BF
    WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF#(optional)
